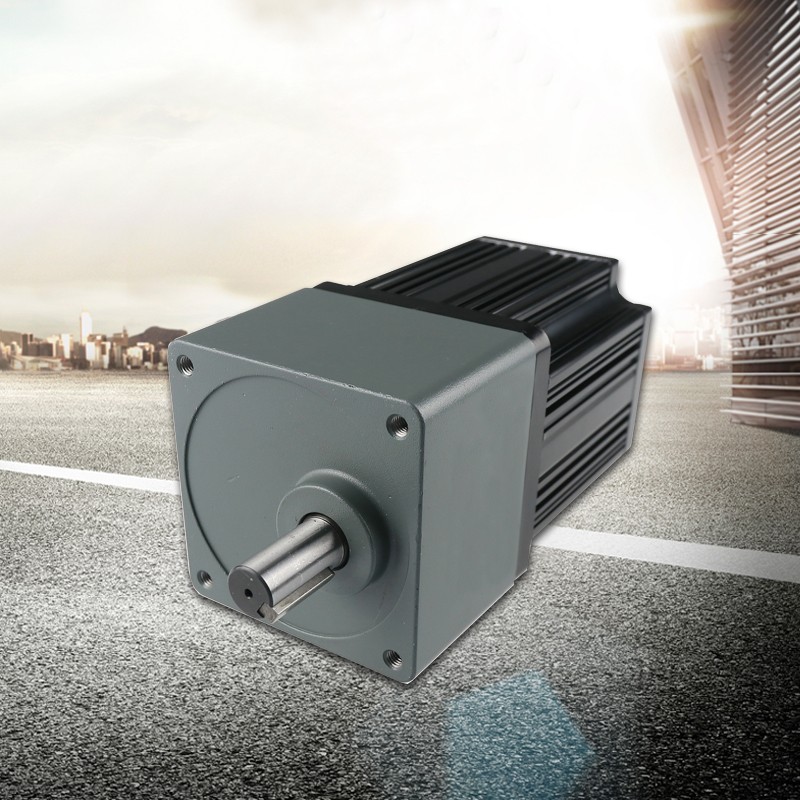

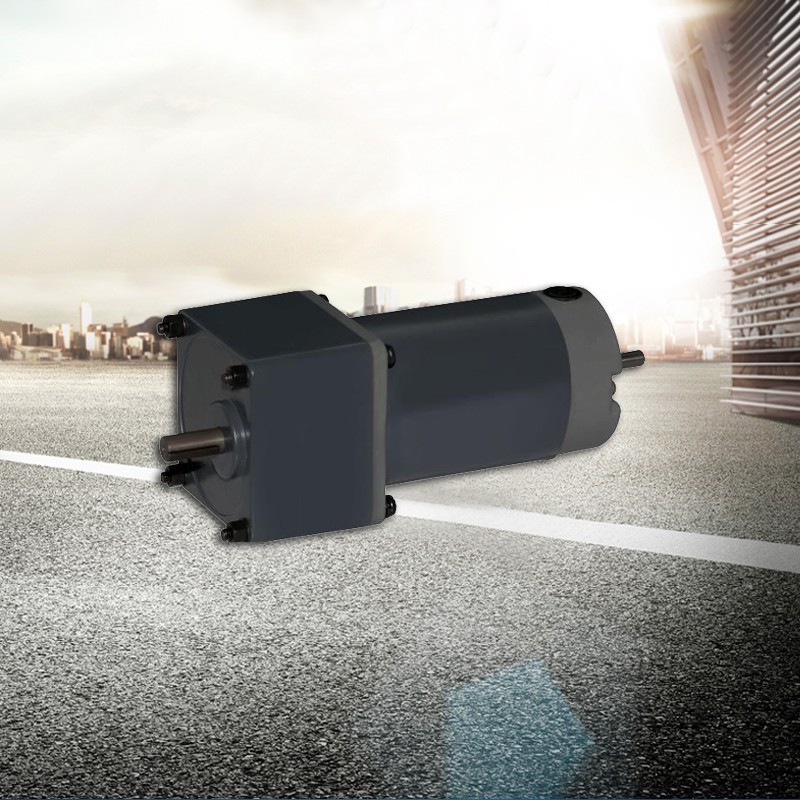

GK (CJ) series square box gear DC reduction motor
Overview
This series of reduction motors is composed of GK series square box gears coupled with various series of DC motors, and is processed using high-precision machining equipment and advanced technology. It has the characteristics of low noise and smooth operation. A reduction ratio of 3-500, combined with motors of different powers, can achieve ideal output torque. Please refer to the ZYT series permanent magnet DC motor for technical parameters of the motor; SZ series DC servo motor.

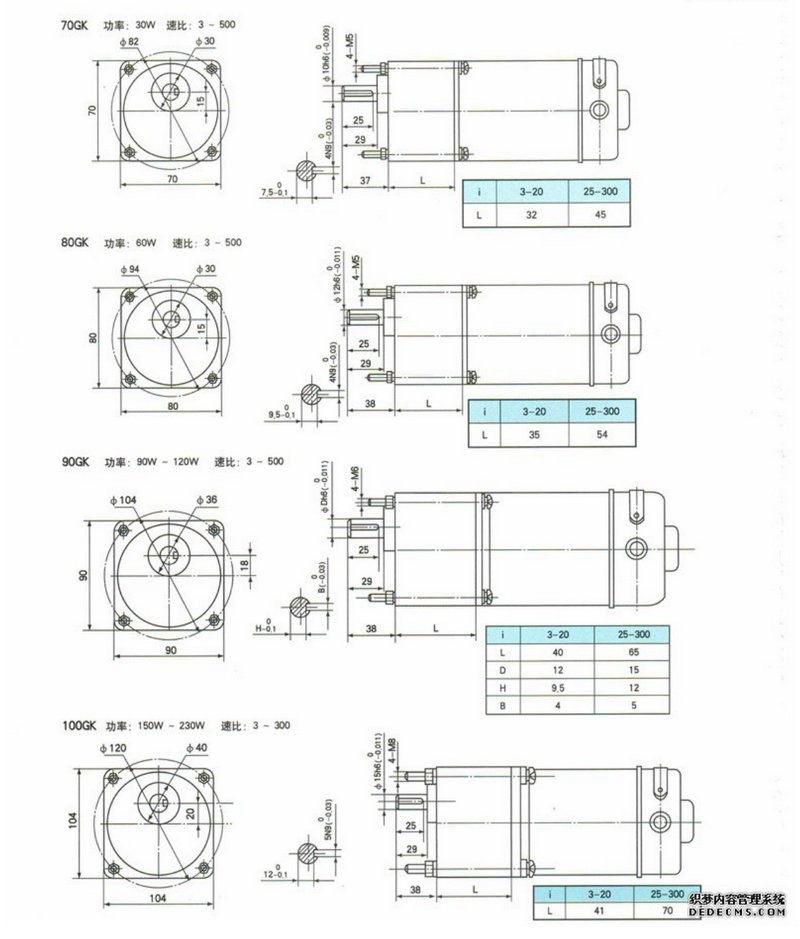

電動機尺寸圖
|
型號 |
電壓(V) |
電流(A) |
轉速(RPM) |
出力(W) |
轉矩(kg.cm) |
齒輪減速比 |
|
GK-80 |
12 |
2.7 |
2000 |
20 |
0.46 |
1:6-1:500 |
|
24 |
1.34 |
2000 |
20 |
0.48 |
1:6-1:500 |
|
|
GK-60 |
12 |
1.2 |
1500 |
15 |
0.46 |
1:6-1:500 |
|
24 |
6 |
1500 |
15 |
0.48 |
1:6-1-500 |
