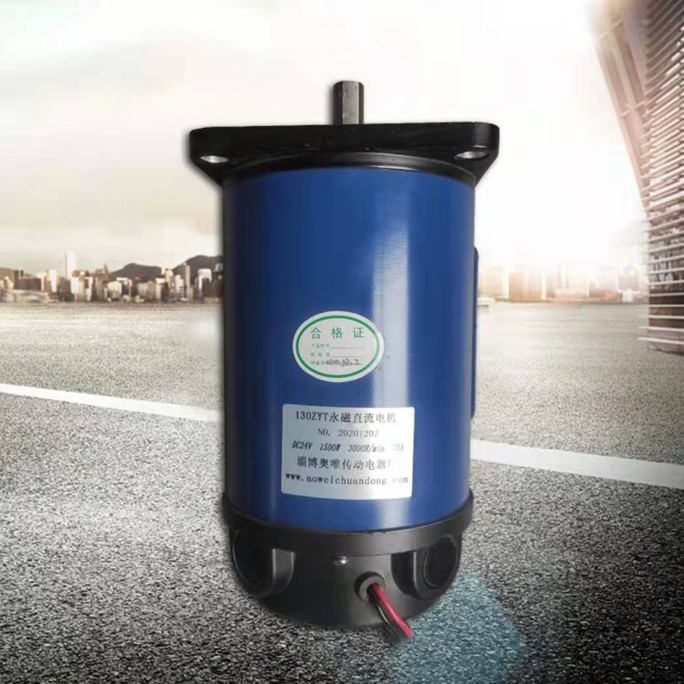

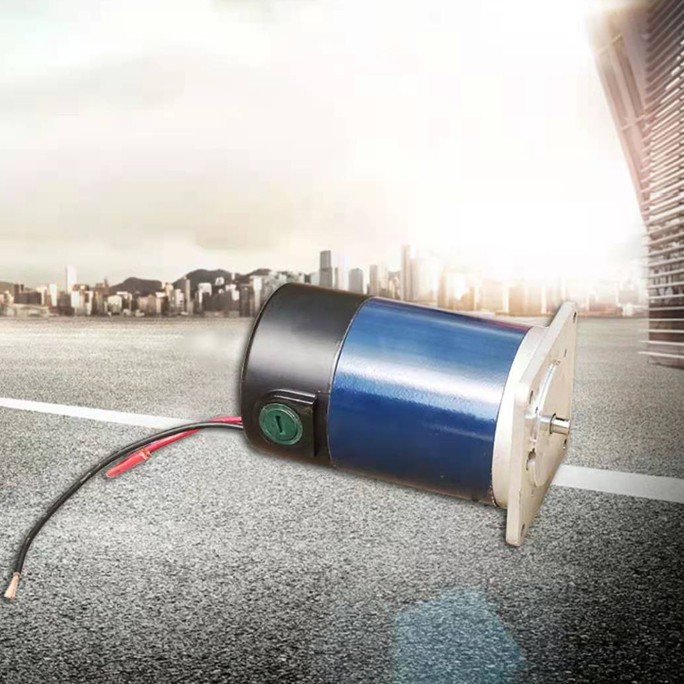

Precautions for using ZYT permanent magnet DC motor:
1. Perform a preliminary inspection of the permanent magnet DC motor according to the following steps.
First, check the appearance of the motor, which should be free of scratches, protrusions, and coating peeling. Then rotate the shaft, which should be able to rotate flexibly without any obvious graphics card jamming. Check if the motor wiring is secure and powered on for operation. There should be no friction during the rotation of the motor, with bearing friction being particularly prominent. After bearing wear, it will make abnormal sounds, causing local overheating and temperature rise.
2. During the disassembly and assembly process, attention should be paid to the demagnetization of permanent magnets caused by excessive current, temperature changes, and open circuits. Especially for aluminum nickel cobalt permanent magnet motors, they should be protected against magnetic short circuits during disassembly and assembly, otherwise they should be magnetized separately after demagnetization.
3. If there is no special instruction for permanent magnet DC motors, under normal circumstances (such as aluminum nickel cobalt permanent magnet DC motors or ferrite permanent magnet DC motors), permanent magnet DC motors are not allowed to operate in reverse braking at rated voltage, otherwise the permanent magnets will demagnetize; If it is necessary to work in this way, a current limiting resistor should be added to limit excessive current.
4. When replacing the electric brush, clean the surrounding carbon dust, clean the commutator with alcohol and gasoline, and pay attention to the no-load running in when replacing the new electric brush.
|
安裝結構型式代號 |
安裝結構型式 |
機座號 |
|
|
單軸伸 |
雙軸伸 |
||
|
機殼外圓安裝 |
A5 |
AA5 |
55-130 |
|
端蓋凸緣安裝 |
A3 |
AA3 |
55-130 |
|

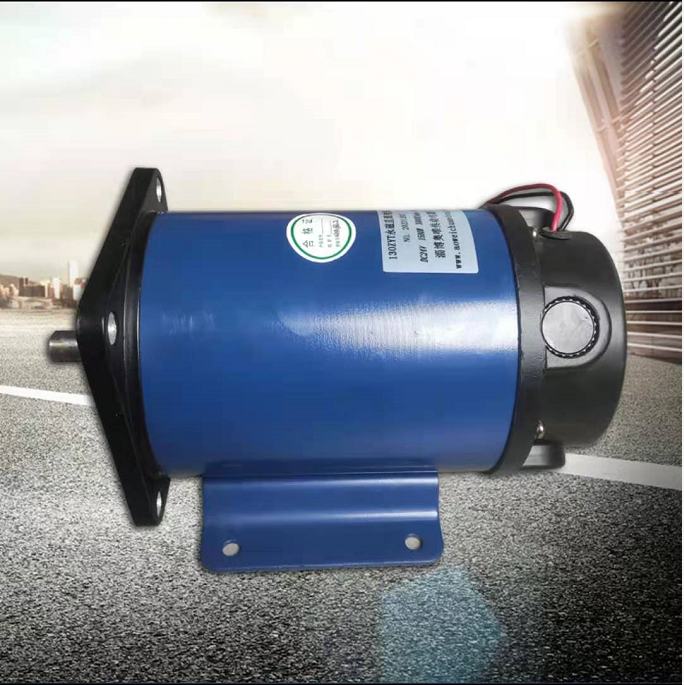

底腳安裝 |
A1 |
AA1 |
70-130 |
|
大法蘭安裝 |
A5 |
AA5 |
70-130 |
|
小法蘭安裝 |
A14 |
AA14 |
|
使用條件
◆海拔不超過4000m
◆環境溫度: -25'C - +40°C
◆空氣相對濕度: 95% (+25'C時)
◆允許濕升:不超過75K (海拔為1000m時)
|
型號 |
轉矩 |
轉速 |
功率 |
電壓 |
電流（A) |
允許順逆轉 |
附注 |
|
55ZYT01 |
63.7 |
3000 |
20 |
24 |
1.5 |
200 |
|
|
55ZYT02 |
63.7 |
3000 |
20 |
27 |
1.3 |
200 |
|
|
55ZYT03 |
63.7 |
3000 |
20 |
48 |
0.7 |
200 |
|
|
55ZYT04 |
63.7 |
3000 |
20 |
110 |
0.34 |
200 |
|
|
55ZYT05 |
55.7 |
6000 |
35 |
24 |
2.5 |
300 |
|
|
55ZYT06 |
55.7 |
6000 |
35 |
27 |
2.2 |
300 |
|
|
55ZYT07 |
55.7 |
6000 |
35 |
48 |
1.3 |
300 |
|
|
55ZYT08 |
55.7 |
6000 |
35 |
110 |
0.54 |
300 |
|
|
55ZYT10 |
63.7 |
3600 |
24 |
110 |
0.4 |
200 |
|
|
|
|||||||
|
55ZYT51 |
92.3 |
3000 |
29 |
24 |
2.1 |
200 |
|
|
55ZYT52 |
92.3 |
3000 |
29 |
27 |
1.8 |
200 |
|
|
55ZYT53 |
92.3 |
3000 |
29 |
48 |
1.1 |
200 |
|
|
55ZYT54 |
92.3 |
3000 |
29 |
110 |
0.46 |
200 |
|
|
55ZYT55 |
79.6 |
6000 |
50 |
24 |
3.45 |
300 |
|
|
55ZYT56 |
79.6 |
6000 |
50 |
27 |
3.1 |
300 |
|
|
55ZYT57 |
79.6 |
6000 |
50 |
48 |
1.74 |
300 |
|
|
55ZYT58 |
79.6 |
6000 |
50 |
110 |
0.74 |
300 |
|
|
55ZYT59 |
85 |
8000-10000 |
80 |
110 |
1.15 |
500 |
|
|
55ZYT61 |
76.4 |
5000 |
40 |
24 |
2.5 |
250 |
|
|
55ZYT63/H1 |
127,4 |
1500 |
20 |
24 |
1.25 |
100 |
|
|
55ZYT64/H9 |
g5 |
3000 |
30 |
220 |
0.25 |
200 |
|
|
55ZYT65 |
89.2 |
7500 |
70 |
110 |
1 |
400 |
|
|
55ZYT66 |
110.8 |
2500 |
29 |
110 |
0.45 |
150 |
|
|
55ZYT68 |
69.6 |
5500 |
40 |
36 |
1.7 |
250 |
|
|
55ZYT72 |
95.5 |
2500 |
25 |
24 |
1.7 |
150 |
|
可訂做：12V、 36V、48V、60V、110V等不同電壓。
1000轉、1500轉、2000轉等不同轉速。
不同安裝尺寸和不同出軸尺寸的電機。
技術數據
|
型號 |
轉矩 |
轉速 |
功率 |
電壓 |
電流（A) |
允許順逆轉 |
附注 |
|
70ZYT01 |
159.2 |
3000 |
50 |
24 |
3.2 |
200 |
|
|
70ZYT02 |
159.2 |
3000 |
50 |
27 |
2.9 |
200 |
|
|
70ZYT03 |
159.2 |
3000 |
50 |
48 |
1.5 |
200 |
|
|
70ZYT04 |
159.2 |
3000 |
50 |
110 |
0.7 |
200 |
|
|
70ZYT05 |
135.4 |
6000 |
85 |
24 |
5.2 |
300 |
|
|
70ZYT06 |
135.4 |
6000 |
85 |
27 |
4.8 |
300 |
|
|
70ZYT07 |
135,4 |
6000 |
85 |
48 |
2.6 |
300 |
|
|
70ZYT08 |
135.4 |
6000 |
85 |
110 |
1.1 |
300 |
|
|
70ZYT16 |
191 |
2000 |
40 |
24 |
2.3 |
100 |
|
|
70ZYT21 |
95.5 |
3000 |
50 |
220 |
0.2 |
200 |
|
|
|
|||||||
|
70ZYT51 |
223 |
3000 |
70 |
24 |
4.3 |
200 |
|
|
70ZYT52 |
223 |
3000 |
70 |
27 |
3.8 |
200 |
|
|
70ZYT53 |
223 |
3000 |
70 |
48 |
2.2 |
200 |
|
|
70ZYT54 |
223 |
3000 |
70 |
110 |
0.95 |
200 |
|
|
70ZYT55 |
191.1 |
6000 |
120 |
24 |
7.5 |
300 |
|
|
70ZYT56 |
191.1 |
6000 |
120 |
27 |
6.6 |
300 |
|
|
70ZYT57 |
191.1 |
6000 |
120 |
48 |
3.8 |
300 |
|
|
70ZYT58 |
191.1 |
6000 |
120 |
110 |
1.6 |
300 |
|
|
70ZYT59 |
166.6 |
7500-9500 |
148 |
110 |
1.95 |
400 |
|
|
70ZYT60 |
238.8 |
4000 |
100 |
110 |
1.3 |
200 |
|
|
70ZYT80 |
223 |
3000 |
70 |
80 |
1.2 |
200 |
|
可訂做： 12V、36V、48V、60V、110V等不同電壓。
1000轉、1500轉、2000轉等不同轉速。
不同安裝尺寸和不同出軸尺寸的電機。
技術數據
|
型號 |
轉矩 |
轉速 |
功率 |
電壓 |
電流(A) |
允許順逆 |
附注 |
|
90zYT01 |
323 |
1500 |
50 |
110 |
0.66 |
100 |
|
|
90zYT02 |
323 |
1500 |
50 |
220 |
0.33 |
100 |
|
|
90zYT03 |
294 |
3000 |
92 |
110 |
1.2 |
200 |
|
|
90zYT04 |
294 |
3000 |
92 |
220 |
0.6 |
200 |
|
|
90ZYT05 |
294 |
3000 |
92 |
24 |
6,1 |
200 |
|
|
s0ZYT51 |
510 |
1500 |
80 |
110 |
1.1 |
100 |
|
|
90ZYT52 |
510 |
1500 |
80 |
220 |
0.55 |
100 |
|
|
90ZYT53 |
480 |
3000 |
150 |
110 |
2 |
200 |
|
|
90zYT54 |
480 |
3000 |
150 |
220 |
1.0 |
200 |
|
|
90ZYT55 |
510 |
1500 |
80 |
24 |
5 |
100 |
|
|
90ZYT56 |
480 |
3000 |
150 |
24 |
8 |
200 |
|
|
90zYT101 |
796 |
1500 |
125 |
110 |
16 |
100 |
|
|
90ZYT102 |
796 |
1500 |
125 |
220 |
0.8 |
100 |
|
|
90ZYT103 |
733 |
3000 |
230 |
110 |
2.8 |
200 |
|
|
90ZYT104 |
733 |
3000 |
230 |
220 |
1.5 |
200 |
|
|
900zYT105 |
733 |
3000 |
230 |
24 |
13.5 |
200 |
|
|
90ZYT106 |
796 |
1500 |
125 |
24 |
6.5 |
200 |
|
|
110zYT51 |
1177 |
1500 |
185 |
110 |
2.5 |
100 |
|
|
110zYT52 |
1177 |
1500 |
185 |
220 |
1.25 |
100 |
|
|
110ZYT53 |
980 |
3000 |
308 |
110 |
4,0 |
200 |
|
|
110zYT54 |
980 |
3000 |
308 |
220 |
20 |
200 |
|
|
110ZYT55 |
980 |
3000 |
308 |
24 |
16,5 |
200 |
|
|
110ZYT56 |
1177 |
1500 |
180 |
24 |
8 |
100 |
|
|
110ZYT101 |
1560 |
1500 |
245 |
110 |
3 |
100 |
|
|
110zYT102 |
1560 |
1500 |
245 |
220 |
1.5 |
100 |
|
|
110zYT103 |
1274 |
3000 |
400 |
110 |
48 |
200 |
|
|
110ZYT104 |
1274 |
3000 |
400 |
220 |
2,4 |
200 |
|
|
110ZYT105 |
1274 |
3000 |
400 |
24 |
22,5 |
200 |
|
|
110ZYT106 |
1560 |
1500 |
250 |
24 |
12 |
100 |
|
|
110zYT151 |
2390 |
1500 |
375 |
110 |
4.5 |
100 |
|
|
110ZYT152 |
2390 |
1500 |
375 |
220 |
2.3 |
100 |
|
|
110zYT153 |
2230 |
3000 |
700 |
110 |
8.5 |
200 |
|
|
110ZYT154 |
2230 |
3000 |
700 |
220 |
4.2 |
200 |
|
|
110ZYT155 |
2230 |
3000 |
700 |
24 |
45 |
200 |
|
|
110ZYT156 |
2390 |
1500 |
370 |
24 |
22 |
100 |
|
技術數據
|
型號 |
轉矩 |
轉速 |
功率 |
電壓 |
電流(A) |
允許順逆 |
附注 |
|
130ZYT51 |
3185 |
1500 |
550 |
110 |
5.8 |
100 |
|
|
130ZYT52 |
3185 |
1500 |
550 |
220 |
2.9 |
100 |
|
|
130ZYT53 |
3185 |
3000 |
1000 |
110 |
11 |
200 |
|
|
130ZYT54 |
3185 |
3000 |
1000 |
220 |
5.5 |
200 |
|
|
130ZYT55 |
3185 |
3000 |
1000 |
24 |
50 |
200 |
|
|
130ZYT56 |
3185 |
1500 |
550 |
24 |
28 |
100 |
|
|
130zYT101 |
3822 |
1500 |
700 |
110 |
1 |
100 |
|
|
130ZYT102 |
3822 |
1500 |
700 |
220 |
3.5 |
100 |
|
|
130zYT103 |
3822 |
3000 |
1200 |
110 |
13 |
200 |
|
|
130ZYT104 |
3822 |
3000 |
1200 |
220 |
6.5 |
200 |
|
|
130ZYT105 |
3820 |
1500 |
700 |
24 |
30 |
100 |
|
|
130ZYT106 |
3820 |
3000 |
1100 |
24 |
50 |
200 |
|
|
130ZYT151 |
4500 |
1500 |
1000 |
110 |
8 |
100 |
|
|
130ZYT152 |
4500 |
1500 |
1000 |
220 |
4 |
100 |
|
|
130ZYT153 |
4500 |
3000 |
1500 |
110 |
15 |
200 |
|
|
130ZYT154 |
4500 |
3000 |
1500 |
220 |
8 |
200 |
|
|
130ZYT155 |
4500 |
1500 |
1000 |
24 |
38 |
100 |
|
|
130ZYT156 |
4500 |
3000 |
1200 |
24 |
55 |
200 |
|
|
130ZYT185 |
6200 |
1500 |
1200 |
24 |
60 |
100 |
|
|
型號 |
H |
h |
H1 |
A |
|
|
|
|
B |
|
L1 |
(L2) |
(L3) |
D |
E |
|
|
d |
|
重量 |
|
|
|
|
(±0.25) |
|
|
|
|
(±0.25) |
|
|
|
|
|
|
|
+0.005 |
(h |
(H,) |
||
|
70ZYT |
42.5 |
79.5 |
|
74 |
90 |
22 |
22 |
22 |
39 |
|
114 |
(124) |
(136) |
|
|
|
2 |
4.3 |
7 |
2 |
|
90ZYT |
50-04 |
97.5 |
|
100 |
116 |
32 |
40.5 |
49 |
44 |
64 |
127 |
(147) |
(172) |
|
16 |
18 |
2 |
5.2 |
10 |
4.2 |
|
100ZYT |
63.0.5 |
120.5 |
|
115 |
130 |
34 |
42 |
57 |
70 |
85 |
172 |
(188) |
(218) |
|
20 |
22 |
4 |
11.5 |
13 |
8 |
|
型號 |
N |
h2 |
ha |
M |
p |
s |
D: |
L1 |
L2 |
L3 |
D |
E |
|
|
G |
d |
重量 |
|
(h) |
|
(hi2 |
土0.15) |
|
(Hu) |
|
|
|
|
(hs) |
|
|
|
(hm) |
(ha) |
||
|
55ZYT |
42 |
|
2.5 |
48 |
58 |
4.5 |
60 |
96 |
106 |
|
5 |
12 |
13.5 |
2 |
3.3 |
7 |
0.9 |
|
70ZYT |
54 |
5 |
|
60 |
72 |
5.5 |
74 |
114 |
124 |
136 |
6 |
14 |
16 |
2 |
4.3 |
1 |
1.6 |
|
90ZYT |
70 |
6 |
|
76 |
92 |
6.6 |
95 |
127 |
147 |
172 |
8 |
16 |
18 |
|
5.2 |
10 |
4 |
|
110ZYT |
85 |
|
|
96 |
112 |
g |
115 |
172 |
188 |
218 |
14 |
20 |
22 |
|
|
13 |
7.8 |
|

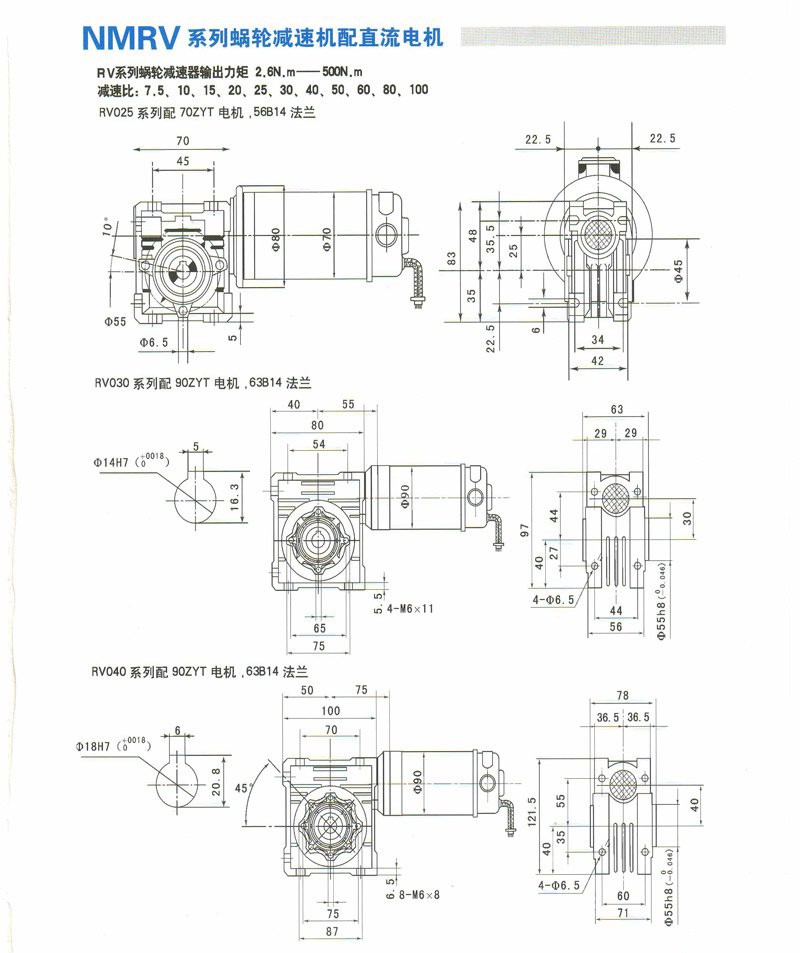

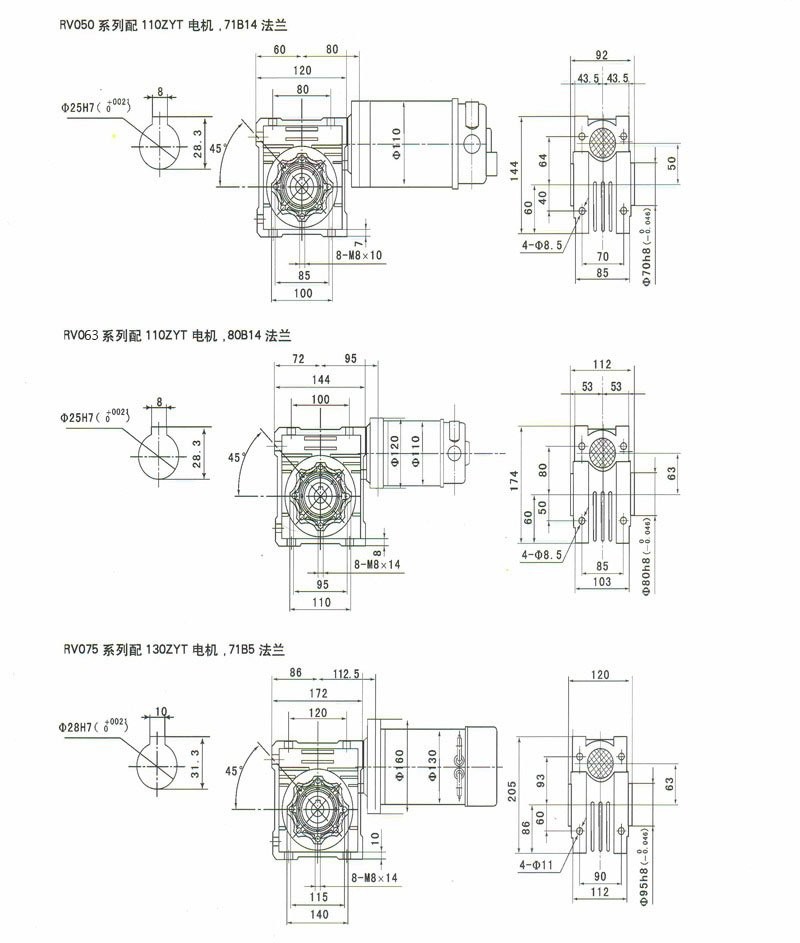

型號 |
D |
E |
|
G |
M |
|
|
|
對應交流電機型號 |
備注 |
|
70ZYT |
9 |
20 |
3 |
7.2 |
55(65) |
40(50) |
70(80) |
M5 |
Y250B14(56B14) |
可直連 |
|
90ZYT |
11 |
23 |
4 |
8.5 |
75 |
60 |
90 |
M5 |
Y263B14 |
|
|
110ZYT |
14 |
30 |
5 |
11 |
85 |
70 |
110 |
M5 |
Y271B14 |
|
型號 |
L |
D |
E |
F |
G |
重量(kg)不大于 |
|
130ZYT 51-99 |
224 |
14 |
22 |
4(5) |
11.5 |
15 |
|
130ZYT101-149 |
224 |
14 |
22 |
4(5) |
11.5 |
17 |
|
130ZYT151-159 |
274 |
19 |
40 |
6 |
15.5 |
20 |
|
型號 |
L |
D |
E |
F |
G |
重量(kg)不大于 |
|
130ZYT 51-99 |
224 |
14 |
22 |
4(5) |
11.5 |
15 |
|
130ZYT101-149 |
224 |
14 |
22 |
4(5) |
11.5 |
17 |
|
130ZYT151-159 |
274 |
19 |
40 |
6 |
15.5 |
20 |
技術數據
|
型號 |
勵磁方式 |
額定電壓 |
額定功率 |
額定電流 |
額定轉速 |
額定轉矩 |
|
DC24-1.5 |
串勵 |
24 |
1.5 |
74 |
2800 |
5.3 |
|
DT24-1.5 |
他勵 |
24 |
1.5 |
74 |
2800 |
5.3 |
|
DC36-1.5 |
串勵 |
36 |
1.5 |
4g |
2800 |
5.3 |
|
DC36-1.5 |
他勵 |
36 |
1.5 |
4g |
2800 |
5.3 |
|
DT48-1.5 |
串勵 |
48 |
1.5 |
37 |
2800 |
5.3 |
|
DC24-1.5 |
他勵 |
48 |
1.5 |
37 |
2800 |
5.3 |
|
DC36-2.2 |
串勵 |
36 |
2.2 |
72 |
2000 |
10.8 |
|
36 |
2.2 |
72 |
2800 |
7.7 |
||
|
DT36-2.2 |
他勵 |
36 |
2.2 |
72 |
2000 |
10.8 |
|
36 |
2.2 |
72 |
2800 |
7.7 |
||
|
DC48-2.2 |
串勵 |
48 |
2.2 |
54 |
2000 |
10.8 |
|
48 |
2.2 |
54 |
2800 |
7.7 |
||
|
DT48-2.2 |
他勵 |
48 |
2.2 |
54 |
2000 |
10.8 |
|
48 |
2.2 |
54 |
2800 |
7.7 |
技術數據
|
型號 |
勵磁方式 |
額定電壓 |
額定功率 |
額定電流 |
額定轉速 |
額定轉矩 |
|
DC36-3 |
串勵 |
36 |
3 |
98 |
2000 |
>14.7 |
|
36 |
3 |
98 |
>2000 |
>14.7 |
||
|
DT36-3 |
他勵 |
36 |
3 |
98 |
2000 |
>14.7 |
|
36 |
3 |
98 |
2000 |
<14.7 |
||
|
DC/T48-3 |
串勵 |
48 |
3 |
73 |
2000 |
>14.7 |
|
48 |
3 |
73 |
>2000 |
>14.7 |
||
|
DT48-3 |
他勵 |
48 |
3 |
73 |
2000 |
>14.7 |
|
48 |
3 |
73 |
2000 |
>14.7 |
||
|
DC48-4 |
串勵 |
48 |
4 |
98 |
200o |
>19.6 |
|
48 |
4 |
98 |
>2000 |
<19.6 |
||
|
DT48-4 |
他勵 |
48 |
4 |
98 |
2000 |
>19.6 |
|
48 |
4 |
98 |
>2000 |
<19.6 |
